This high-efficiency ozone generator series (10-300g/h) produces ozone concentrations exceeding 100mg/L from self-generated oxygen (>90% purity). It features a compact, water-cooled design with adjustable output and robust protection systems for reliable, low-maintenance operation.
Key Advantages:
Low power consumption & operating cost with stable, automated performance.
Integrated oxygen generation system ensures high-concentration ozone output.
Durable construction suitable for demanding environments with multiple safety protections.
10-300g/h Oxygen source ozone generator has low power consumption, stable operation, and convenient operation. It can meet different needs and has built-in multiple application scenarios. It has stable operation and low cost, efficient and convenient operation, and low use cost.
Product Features:

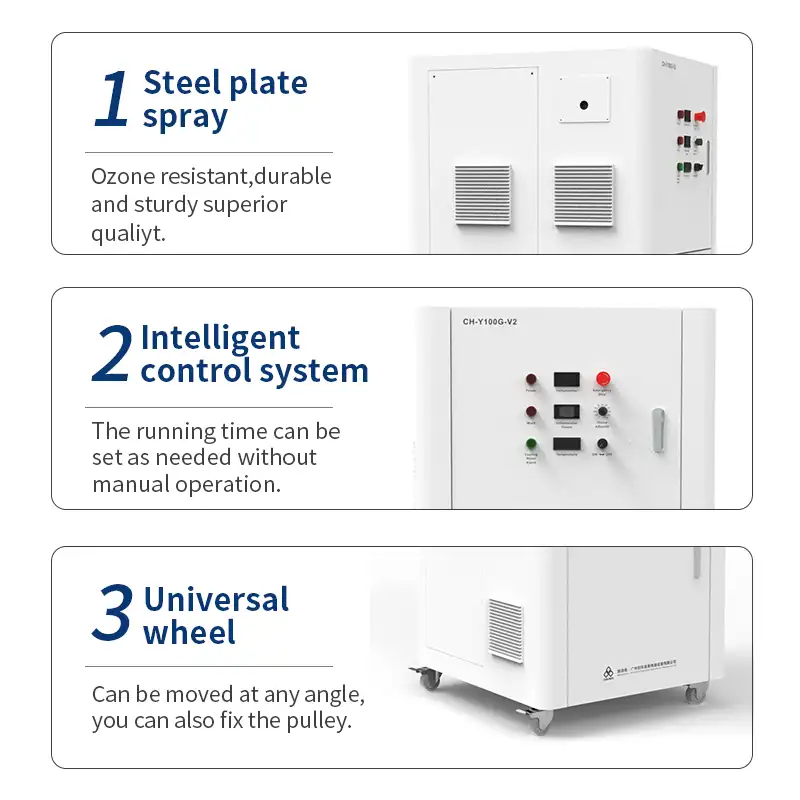

1、Built-in oxygen production system, nano-molecular sieve technology, oxygen concentration reaches more than 90%
2、Using double water-cooled enamel ozone units and high-frequency power supply, the equipment produces ozone concentrations of more than 100mg/L, stable ozone production and long life
3、Applicable to field environments with poor conditions, can ensure long-term and trouble-free operation
4、Compact structure, small footprint, the equipment can be freely placed or moved according to actual conditions
5、Ozone concentration 20-100% adjustable; high degree of automation, convenient operation, can be realized unattended
6、The equipment has a backflow prevention function to prevent the backflow of the outlet pipe from damaging the generating pipe
7、Start-up and shutdown delay function to ensure equipment cooling and eliminate residual ozone
8、Use multiple early warning protection devices such as overcurrent, overpressure, water cut protection, cooling water temperature monitoring, etc. to ensure continuous and safe operation of the equipment
Components:
| Ozone generator housing | High-quality steel plate is sprayed with plastic to resist ozone corrosion. |
| Air supply system | Oil-free air compressor |
| Air processing system | Refrigerated dryer |
| Oxygen production system | Nano molecular sieve oxygen production unit |
| Ozone generator unit | Double water-cooled ozone generating tube is a product independently developed by our company. The inner electrode uses enamel coating and the outer electrode uses stainless steel; the enamel generating tube has stronger impact resistance than glass and ceramic materials, and uses insulating materials to prevent leakage. |
| Ozone dedicated power supply | High-frequency inverter circuit, power device uses IGBT, working frequency 8-12KHZ, high-frequency step-up transformer, working voltage: 3-5KV: the magnetic core uses ferrite, and the coil wire uses high-temperature multi-strand high-frequency wire. |
| Cooling system | The whole machine adopts water cooling method |
| Air circuit | The inlet and outlet pipes are made of polytetrafluoroethylene (Teflon) material |
| Instruments and accessories | Ozone production adjustment knob, voltmeter, ammeter, microcomputer time controller, cooling water temperature meter, ozone unit operation ammeter, main power switch, power switch, working switch, emergency stop switch, working indication, power indication, fault alarm indication |
Technical Parameters：
| Model | CH-Y10G | CH-Y20G | CH-Y30G | CH-Y50G | CH-Y60G |
| Ozone output g/h | 10 | 20 | 30 | 50 | 60 |
| Power KW | 0.88 | 1.3 | 1.5 | 2.0 | 2.4 |
| Ozone concentration mg/L | 30-150 | 30-150 | 30-150 | 30-150 | 30-150 |
| Operating temperature ℃ | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 |
| Air flow L/min | 40 | 90 | 130 | 220 | 250 |
| Air dew point ℃ | ≤ – 40℃ | ≤ – 40℃ | ≤ – 40℃ | ≤ – 40℃ | ≤ – 40℃ |
| Oxygen flow L/min | 3 | 5 | 7 | 10 | 10 |
| Oxygen concentration | 93%±3 | 93%±3 | 93%±3 | 93%±3 | 93%±3 |
| Cooling method of the whole machine | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling |
| Cooling water volume L/min | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
| Power supply V/Hz | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 |
| Installation environment | Indoor | Indoor | Indoor | Indoor | Indoor |
| Generator power adjustment range | 10-100% | 10-100% | 10-100% | 10-100% | 10-100% |
| Dimensions mm | 720×540×1250 | 720×540×1250 | 720×540×1250 | 720×540×1250 | 720×540×1250 |
| Net weight kg | 91 | 94 | 98 | 110 | 132 |
| Model | CH-Y80G | CH-Y100G | CH-Y150G | CH-Y200G | CH-Y300G |
| Ozone output g/h | 80 | 100 | 150 | 200 | 300 |
| Power KW | 2.7 | 3 | 4.0 | 4.9 | 6.2 |
| Ozone concentration mg/L | 30-150 | 30-150 | 30-150 | 30-150 | 30-150 |
| Working temperature ℃ | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 |
| Air flow L/min | 260 | 325 | 390 | 455 | 525 |
| Air dew point ℃ | ≤ – 40℃ | ≤ – 40℃ | ≤ – 40℃ | ≤ – 40℃ | ≤ – 40℃ |
| Oxygen flow L/min | 15 | 20 | 30 | 40 | 50 |
| Oxygen concentration | 93%±3 | 93%±3 | 93%±3 | 93%±3 | 93%±3 |
| Cooling method of the whole machine | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling |
| Cooling water volume L/min | 20-60 | 20-60 | 20-60 | 20-60 | 20-60 |
| Power supply V/Hz | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 |
| Installation environment | Indoor | Indoor | Indoor | Indoor | Indoor |
| Ozone power cooling method: | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling |
| Generator power adjustment range: | 10-100% | 10-100% | 10-100% | 10-100% | 10-100% |
| Dimensions mm | 770×600×1350 | 770×600×1350 | 670×1100×1355 | 670×1100×1355 | 1000×1250×1750 |
| Equipment net weight kg | 148 | 192 | 260 | 332 | 425 |
