Applications:
Aquactulture,Aquarium,Fish farming Water treatment
Drinking water treatment, Spring water treatment ozone generator, Vegetable and fruits wash machine, Chemical oxidation, Decolor and bleach ozone machine, Mariculture equipment, Mariculture ozone generator, Aquaculture water sterilization ozone generator, Aquaculture equipment, Remove alga equipment, Aquaculture ozone generator, Aquaculture recycle water treatment equipment, Raw water aquaculture equipment, Connect with outside gas feeding ozone generator, Nursery aquaculture equipment
Features:
1、SS housing /carbon steel sprayed with plastic housing.
2、It must connect with outside oxygen generator or oxygen tank.
3、With built-inwater cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time.
4、Small in size, adjustable ozone range: 20%–100%.
5、Use with over current, over voltage, water protection device, for ensuring ozone machine running safety.

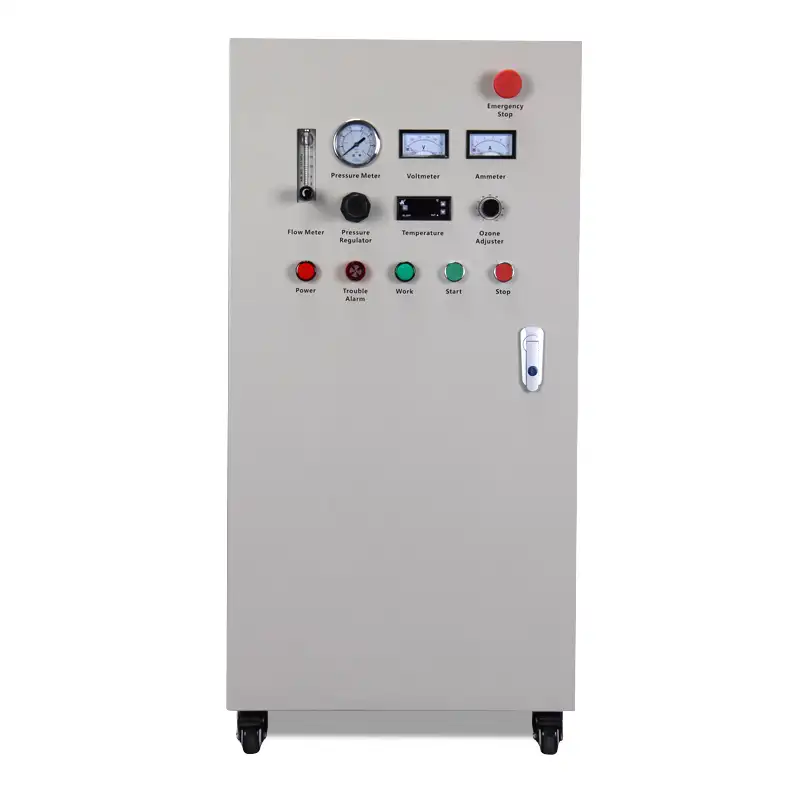

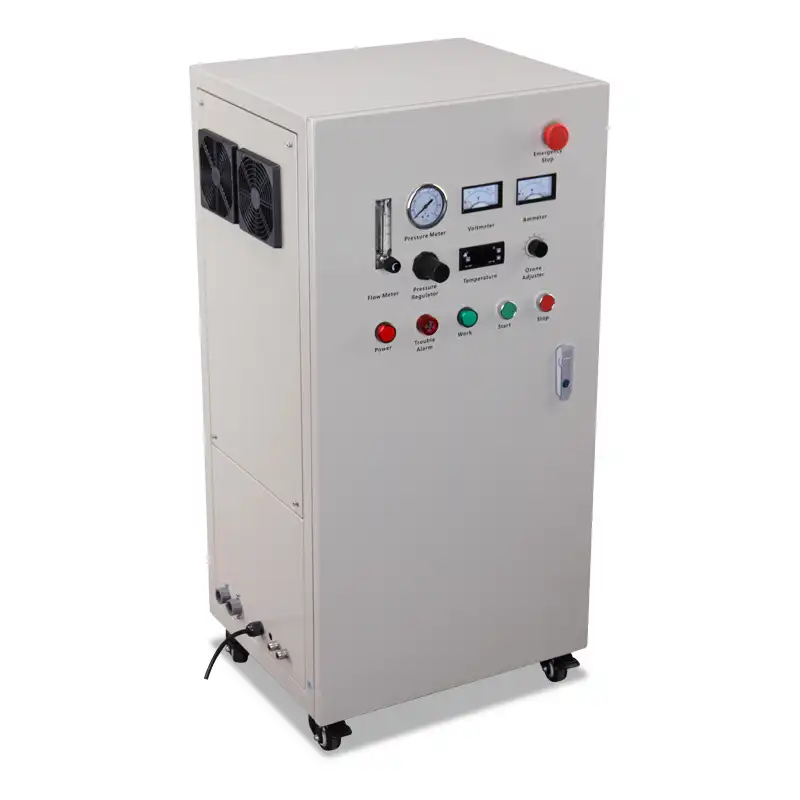

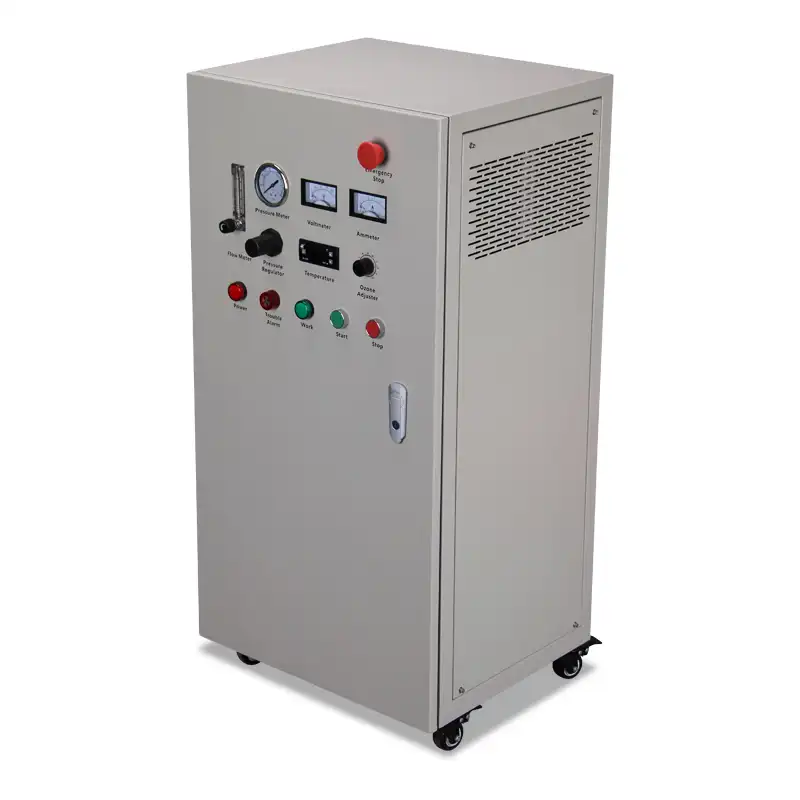

Control panel:
Ozone output adjuster, Flow meter , Pressure regulator, Voltmeter, Ampmeter, Switch, Emergency stop, Working light, Power light, Alarm
Technical Parameters:
| Model | CH-WZQ50G | CH-WZQ60G | CH-WZQ80G | CH-WZQ100G | CH-WZQ200G |
| Ozone output g/h | 50 | 60 | 80 | 100 | 200 |
| Power KW | 0.46 | 0.53 | 0.7 | 1 | 1.9 |
| Ozone concentration mg/L | 30-150 | 30-150 | 30-150 | 30-150 | 30-150 |
| Operating temperature ℃ | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 |
| Air flow L/min | — | — | — | — | — |
| Air dew point ℃ | — | — | — | — | — |
| Oxygen flow L/min | 15 | 20 | 25 | 30 | 65 |
| Oxygen concentration | — | — | — | — | — |
| Cooling method of the whole machine | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling |
| Cooling water volume L/min | 20-60 | 20-60 | 20-60 | 50-80 | 50-80 |
| Power supply V/Hz | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 |
| Installation environment | Indoor | Indoor | Indoor | Indoor | Indoor |
| Ozone power supply cooling method | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Generator power adjustment range | 10-100% | 10-100% | 10-100% | 10-100% | 10-100% |
| Dimensions mm | 500×430×1060 | 500×430×1060 | 500×430×1060 | 680×420×1040 | 680×420×1040 |
| Net Weight kg | 35 | 37 | 39 | 61 | 85 |
